FEATURES COMMON TO ALL HP ME R SERIES EVAPORATORS
The heat pump evaporators of the HP ME R series are ideal for meeting the need to obtain very high density concentrates and for the evaporation of products that are extremely encrusting to heat exchangers.
By means of an automatic motorized scraper, which continuously keeps clean the exchange surfaces of the boiling boiler, it is possible to obtain higher concentrations than other evaporative systems, while avoiding the deposit on the exchange surfaces.
The final concentrate will be finally discharged by means of pneumatic pumps of diaphragm type or of single screw type.
It is also possible to place the system above a lifting frame, so that the discharge through the bottom discharge valve can be carried out directly into a crystal separation system.

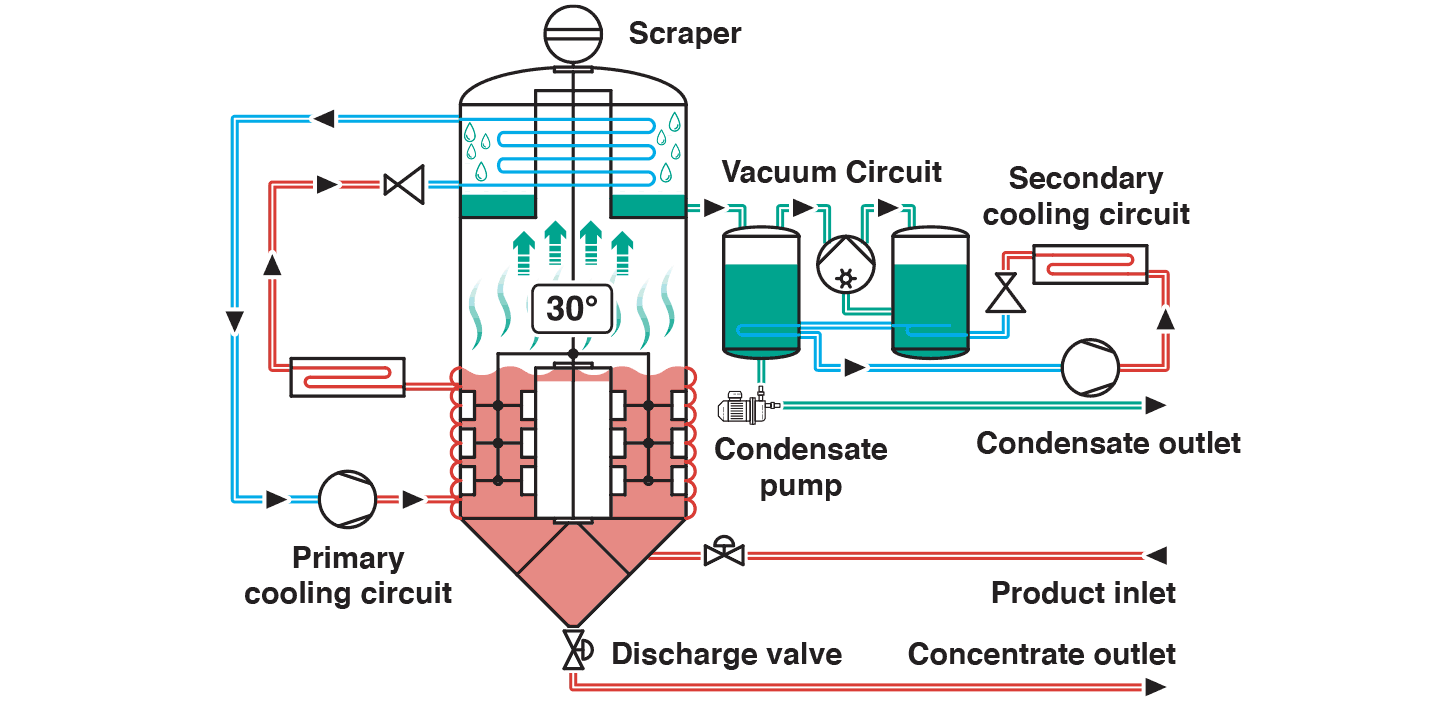

Operating diagram for heat pump vacuum evaporator of mergers thrust
Indicative table of some of the available models. Other sizes are available and can be realized custom-made.
| HP 10 ME R | HP 20 ME R | HP 30 ME R | HP 40 ME R | HP 60 ME R | HP 80 ME R | HP 125 ME R | HP 150 ME R | HP 200 ME R | |
|---|---|---|---|---|---|---|---|---|---|
| Production with water (l/24h) |
240 | 480 | 720 | 960 | 1.440 | 1.920 | 3.000 | 3.600 | 4.800 |
| Electrical power consumption indicative (kW) |
2,5 | 5 | 7,5 | 10 | 15 | 20 | 31 | 37 | 50 |
| Indicative dimensions (l x w x h cm) |
70 x 220 x 250 | 80 x 250 x 280 | 80 x 250 x 300 | 110 x 270 x 300 | 120 x 300 x 320 | 120 x 300 x 320 | 200 x 350 x 350 | 240 x 350 x 350 | 240 x 350 x 350 |
